SeaMAID PAR56 Ecoproof white LED
Ref. Provider 502204
LED SeaMAID Ecoproof white bulb 17.5w without radio control
Low electricity consumption,
Powerful beam of 1450lm maximum,
Winner of the Grand prix de l'innovation : Salon Piscine global International pool and spa fair
Ref. Abatik 023576 Ref. Provider 502204
Ref. Abatik 023577 Ref. Provider 502228
SeaMaid Ecoproof in detail
Installing a pool lighting projector can appear to be complicated...
The SeaMAID Ecoproof can be fitted, without adaptation, to any PAR56 alcove available on the market. With universal dimensions, this bulb perfectly replaces a 300W filament bulb or LED.
The bulb features a specific connection chamber that ensures watertightness and easy, fast integration to its alcove. This means you no longer need to envisage expensive, complicated labour and material costs to adapt your bulb and alcove.
In the context of pool renovation, pins are supplied to adapt the bulb to the existing alcove.
The SeaMAID Ecoproof was the winner of the Grand prix de l'innovation from Piscine global, International Pool and Spa Fair, 2016.
YouTube conditions the playback of its videos on the deposit of tracers in order to offer you targeted advertising based on your browsing.
By clicking on "I authorize" the plotters will be deposited and you will be able to view the video. You have the option of withdrawing your consent at any time.
For more information, visit the YouTube cookies policy
Features
1. Specific connection chamber allows the connection of power cable to be connected with screw on lid and O-ring.
2. Cable gland ensures cable watertighness
Dimensions
Advantages
- Proved efficiency : SeaMAID uses a renowned, active Research & Development department that is equipped with a unique testing lab : A subaquatic measurement device designed in collaboration CSTB, Nantes, France and the National Testing Laboratory (Laboratoire National d'Essais -LNE). Using this device, SeaMAID can precisely measure the true lumen of its lighting systems in their operational environment as requested in the European regulation 1194.
The test results are incontestable and correspond to the reality of operational lighting in an aquatic environment.
- Resistance : Design features polycarbonate injection, the SeaMAID projector proves to have a good resistance to shocks, heat and chemical aggression.
- Performance : Beam specifically developed for aquatic lighting. Friction-welded techniques are used to obtain a perfect repartition of light which is harmonious and non-blinding.
- Economical : LED bulbs offer huge energetic economies.
SeaMAID Ecoproof simplifies installation and renovation of your lighting system :
- suppression of rear dome
- suppression of lamp O-ring
- suppression of cable gland in the alcove
- Reduced number of screws
Installation
Installation of an Ecoproof with renovation kit in a Hayward PAR56
YouTube conditions the playback of its videos on the deposit of tracers in order to offer you targeted advertising based on your browsing.
By clicking on "I authorize" the plotters will be deposited and you will be able to view the video. You have the option of withdrawing your consent at any time.
For more information, visit the YouTube cookies policy
Installation of an Ecoproof with renovation kit in a Procopi PAR56
YouTube conditions the playback of its videos on the deposit of tracers in order to offer you targeted advertising based on your browsing.
By clicking on "I authorize" the plotters will be deposited and you will be able to view the video. You have the option of withdrawing your consent at any time.
For more information, visit the YouTube cookies policy
Replacing a PAR56 projector with a SeaMaid Ecoproof
YouTube conditions the playback of its videos on the deposit of tracers in order to offer you targeted advertising based on your browsing.
By clicking on "I authorize" the plotters will be deposited and you will be able to view the video. You have the option of withdrawing your consent at any time.
For more information, visit the YouTube cookies policy
Supplied material
Body of lamp welded to lens1Threaded plug to watertight chamber1O-ring for plug1Threaded nut for cable gland1Cable glands3 (vaired dimensions)Silicone O-ring, inner diameter 7mm blue1Silicone O-ring, inner diameter 9mm blue1Stainless steel screws to fix cable to terminal1Nylon maintaining lugs for finishing ring1
Remote control
For further comfort whilst swimming, it is possible to control your lighting projectors using a remote control.

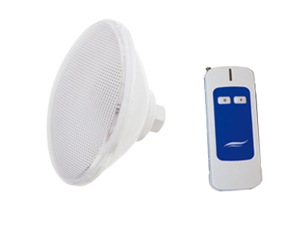

Remote control for PAR56 Ecoproof white projector
Optional equipment : SeaMAID box
The perfect solution to command up to 12 projectors situated around your pool or garden, using only one remote control.
Easy to install, the box is connected to the projector power cable at the transformer outlet.
The electronics of the radio command is installed in a reinforced, watertight ABS box, adapted for outdoor use. Conform to the norm IP65.
There are two available models :
- 1 canal model with a 2 button remote control that can command up to 6 projectors.
- 4 canal model with an 8 button remote control, commanding 3 projectors per canal, a total of 12 projectors.
Technical characteristics
Number of canals1Command systemRadio remote suppliedInlet/outlet amperage10A maxCapacity120WProtection20A fuseStandby consumption80mA / canalOperational temperature range-40° / +70°Humidity rate10 to 90%Connections4mm² cableTechnical characteristics
Number of canals4Command systemRadio remote suppliedInlet/outlet amperage10A max / canalCapacity240WProtection20A fuseStandby consumption80mA / canalOperational temperature range-40° / +70°Humidity rate10 to 90%Connections4mm² cable
Warranty
YouTube conditions the playback of its videos on the deposit of tracers in order to offer you targeted advertising based on your browsing.
By clicking on "I authorize" the plotters will be deposited and you will be able to view the video. You have the option of withdrawing your consent at any time.
For more information, visit the YouTube cookies policy
YouTube conditions the playback of its videos on the deposit of tracers in order to offer you targeted advertising based on your browsing.
By clicking on "I authorize" the plotters will be deposited and you will be able to view the video. You have the option of withdrawing your consent at any time.
For more information, visit the YouTube cookies policy
YouTube conditions the playback of its videos on the deposit of tracers in order to offer you targeted advertising based on your browsing.
By clicking on "I authorize" the plotters will be deposited and you will be able to view the video. You have the option of withdrawing your consent at any time.
For more information, visit the YouTube cookies policy
Remote control for PAR56 Ecoproof white projector
Technical characteristics
Technical characteristics
2 years
Price incl. VAT
Ask for a free quote seamaid par56 ecoproof white led
Other product : SeaMAID PAR56 Ecoproof white LED
Starting from 139 eur Including VAT.
