F100 static chair lift
Recommended retail price 2023 starting from :
7990 €
Our Price starting from :
7990 € Including VAT
Ref. Abatik 020113
Ref. Provider F100
F 100 static manual chair lift for disabled
Ref. Provider F100
F 100 static manual chair lift for disabled

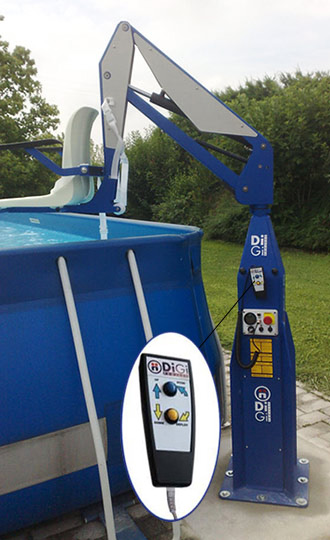

Discover the F100 static chair lift for the disabled, facilitating access to above ground pools,
Command unit to manage raising and lowering actions. 350° manual rotation,
Powered by rechargeable 24V battery,
Maximal weight 140kg
Command unit to manage raising and lowering actions. 350° manual rotation,
Powered by rechargeable 24V battery,
Maximal weight 140kg
In stock
F 100 static manual chair lift for disabled
Ref. Abatik 020113 Ref. Provider F100
Ref. Abatik 020113 Ref. Provider F100
7990 €
Optional four-point safety belt option
Ref. Abatik 020110 Ref. Provider C4P
Ref. Abatik 020110 Ref. Provider C4P
130 €
Optional five point safety belt
Ref. Abatik 017023 Ref. Provider C5P
Ref. Abatik 017023 Ref. Provider C5P
299 €
Optional head rest
Ref. Abatik 017024 Ref. Provider PT
Ref. Abatik 017024 Ref. Provider PT
229 €
The F100 static chair lift in détail

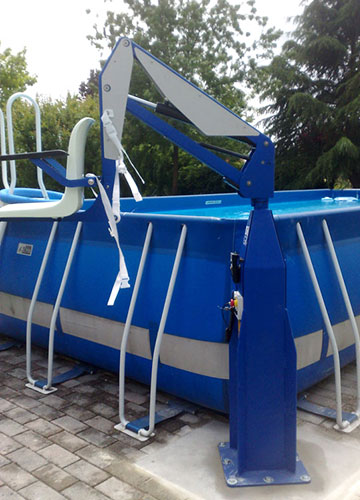

The F100 ensures pool access for the disabled and is particularly adapted to above ground pool use.
French legislation requires public establishments to facilitate pool access for disabled and those with reduced mobility. This concerns public pools, camping sites, leisure, rehabilitation and sports centres...
The chair lift has been designed for indoor and outdoor use. Featuring a galvanised steel structure, coated with an epoxy paint which resists to humidity and weather conditions. The unit's arm can extend to 115 cm, guaranteeing secure water entry in any type of above ground pool (self-supporting, wooden or tubular), spas or other types of above ground pools.
A user-friendly chair lift
The F100 raises and lowers the user automatically using the watertight command unit or control panel, situated on the lift structure.

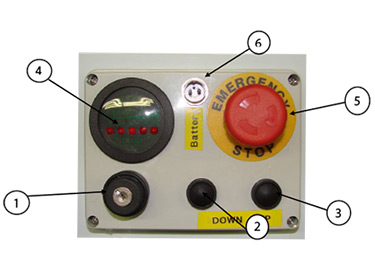

The control panel features the following features/commands:
1- Key-operated
2- Lowering button
3- Raising button
4- Battery charge level, depicted by LED display. 5 lit LEDS indicate 100% charge
5- Emergency stop button
6- A battery recharge socket
F100 static lift description
The chair lift has been designed for indoor and outdoor use. Featuring a galvanised steel structure, coated with an epoxy paint which resists to humidity and weather conditions. The unit's arm can extend to 115 cm, guaranteeing secure water entry in any type of above ground pool (self-supporting, wooden or tubular), spas or other types of above ground pools.
A user-friendly chair lift
The F100 raises and lowers the user automatically using the watertight command unit or control panel, situated on the lift structure.
The control panel features the following features/commands:
1- Key-operated
2- Lowering button
3- Raising button
4- Battery charge level, depicted by LED display. 5 lit LEDS indicate 100% charge
5- Emergency stop button
6- A battery recharge socket
The command unit is watertight and features raising and lowering commands.
350° chair lift
The F100 requires the presence of a 2nd person to manipulate rotation. The unit rotates effortlessly up to 350°.
Secure and comfortable seating
The chair lift is supplied with :
- Plastic chair
- Foldable armrests
- 2 point safety belt
The F100 chair lift design does not allow the chair to be immersed more than 60cm in depth
Available on option :
- 4 point safety belt
- 5 point safety belt
- head rest
YouTube conditions the playback of its videos on the deposit of tracers in order to offer you targeted advertising based on your browsing.
By clicking on "I authorize" the plotters will be deposited and you will be able to view the video. You have the option of withdrawing your consent at any time.
For more information, visit the YouTube cookies policy
.
Power supply and security system
The maximal lifting charge of the F100 in use is 140kg.
The F100 operates with a 24volt rechargeable battery with a capacity of 50 cycles (1 cycle = 1 raising and 1 lowering cycle).
Lowering time is 23 seconds and raising time is 17 seconds.
In the case of failure, the chair lift is equipped with an emergency system situated on the structure of the unit. This system is consists of a pump and valve that allows the chair lift to be manoeuvred without electricity. The pump raises the lifting arm. By using the valve, the arm will lower.
In the case of emergency, the red emergency button on the control panel will block all movement of the F100 lifting chair.
The maximal lifting charge of the F100 in use is 140kg.
The F100 operates with a 24volt rechargeable battery with a capacity of 50 cycles (1 cycle = 1 raising and 1 lowering cycle).
Lowering time is 23 seconds and raising time is 17 seconds.
In the case of failure, the chair lift is equipped with an emergency system situated on the structure of the unit. This system is consists of a pump and valve that allows the chair lift to be manoeuvred without electricity. The pump raises the lifting arm. By using the valve, the arm will lower.
In the case of emergency, the red emergency button on the control panel will block all movement of the F100 lifting chair.
Installation
Fixation requires 8 anchor points on a concrete block measuring 60 x 60 x 60 cm wich is positioned on ground level.
The chair lift can be equipped with a larger or smaller base depending on the height of your above-ground pool:
- 400 mm
- 600 mm
Do you have questions? Contact our commercial service today.
Technical features

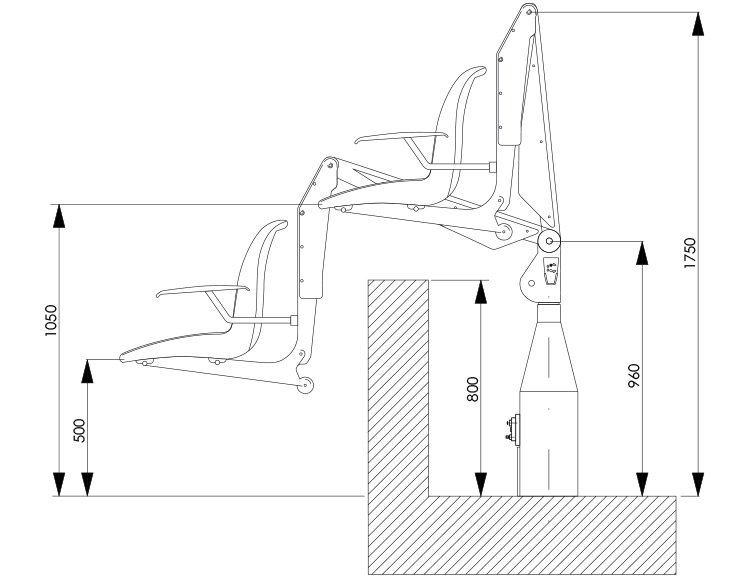

Dimensions (in mm)
Weight
100 kg
Power supply
24 V rechargeable battery
Security system
Manual pump and valve
Emergency stop system
Yes
Structure
Epoxy coated galvanised steel structure
Lifting capacity
Up to 140 kg
Maximal extension
1150 mm
Lifting system type
Electro-hydraulic
Lowering time (in use)
23 sec
Lifting time (in use)
17 sec
Maximum depth of chair immersion
Max 60 cm
Rotation
Manual 350°
Floor fixation plate
400 mm or 600 mm selon depending on the height of pool
Anchoring
8 anchor points on concrete block measuring 60 x 60 x 60 cm
Certification
Conform to EU security norms
Accessories on option
4 point safety belt
5 point safety belt
Head rest
Other colours are available on option
Other colours are available, we will establish your quote to your specific criteria.
Warranty
2 years
Photos non-contractual
Price incl. VAT
