Pool covers - pool covering solutions Pool shutters ECA ROUSSILLON immersed shutter with waterline motor ECA ROUSSILLON immersed shutter with waterline motor
Recommended retail price 2024 :
11080 €
Our Price :
11080 € Including VAT
Ref. Abatik 009479
ECA ROUSSILLON immersed shutter with waterline motor
ECA ROUSSILLON immersed shutter with waterline motor
Waterline motor with limit management,
For pool with maximum dimensions of 6 x 12m + stairs
For pool with maximum dimensions of 6 x 12m + stairs
- Complies with standard NF P 90-308
In stock
The Roussillon immersed shutter with waterline motor has been specifically designed for existing pools or pools under construction with a maximum width of 6m.
The motor of the axis is situated above the waterline, under slatted flooring.
*Prices including VAT for a standard pool configuration. Supplied elements : mechanical system, slats, Handroanthus slatted flooring, separation panel, panel support, security flanges for pool wall.
Other combinations are possible, please contact us for your personalised quote, corresponding to your exact configuration.
The price of the shutter includes:
- 1 ROUSSILLON immersed axis
- 1 white, opaque slatted shutter cover
- 1 security system (ABS flanges to anchor to pool wall and straps)
- 1 white supporting beam with white anchoring supports
- 1 white lacquered aluminium slatted flooring section 700mm
- 1 white separation panel 900mm (for a duct up to 1.17m in depth)
- White separation panel supports to anchor supporting beam
- Packaging
These prices do not include a stair cut (available on option) or transport costs (consult us).
Standard
Maximum 6x12m + stairs
Limit management
Maintenance is faster, easier and simplified, access to regulate limit management is also eased.
Installation is facilitated for existing pools or pools under construction.
The motor of the immersed automatic shutter is positioned in the duct containing the axis but is not in contact with the pool water.
Access to the motor is, therefore, simplified.
The immersed zone that contains the axis of the shutter can be isolated by a separation panel built during the construction of the pool or after, using a PVC separation panel.
ROUSSILLON immersed shutter with white aluminium slatted flooring
The shutter is delivered with a lacquered aluminium supporting beam. Two sections are available : L100 x H70mm (1) or L100 x H100mm (2).
The supporting beam is available in white, sand and grey.
There are two supplied supporting brackets with a range of 4 different types of brackets adapted to your specific pool configuration:
- Brackets for horizontal profile installation on a liner pool finish (in the case of construction)
- Brackets for vertical profile installation on a liner pool finish (in the case of renovation)
- Adjustable brackets with adapted support
- Brackets to be fixed to the pool wall
Support for separation panel to be fixed to pool wall
Bracket for separation panel to be fixed under the supporting beam
The slats of the Roussillon immersed shutter with waterline motor conform to the norm NF P90-308
Each slat is composed of 3 compartments. Each compartment contains air which ensures buoyancy and limits heat dispersion.
At the extremity of each slat, caps are soldered to ensure water tightness. 20 mm fins finish each element. These fins can be replaced by fins which vary in size, to fit your particular pool configuration.
Finishing fins
Shaped finish
Guiding wheels
- The shutter is assembled by clipping the slats together.
- To clip one slat to the other, begin by engaging the lower hook of the male fixture on the right-hand slat into the female fixture on the left-hand slat (fig.1 et fig.2).
- Repeat an oscillating movement till the slats click together (fig.3).
When the Roussillon immersed shutter with waterline motor is positioned on the pool width, it can be adapted to several stair shapes : rectangular (1), trapezoid (2), roman (3), semi-circular (4) or free form (5) (after consultation with us).
Two finishes are available for stair cuts : Square finish (a) or shaped finish (b).
The straight cut is the most simple. The "shaped" cut is perfectly formed to the shape of your pool. This solution proves to be the most esthetically pleasing.
Stair cuts are available on option : consult us for your specific quote
The Roussillon immersed shutter with waterline motor is supplied with an anti-lift system. It is essential to install a fixation system if your shutter is to conform to the norm NF 90-308.
We offer the choice of 3 security systems :
Easy to install under pool coping or to pool wall.
Colour of strap : white.
You can choose the ABS strap security system, to be fixed to pool wall or under coping.
1. ABS security strap
2. Security system, to be fixed to pool wall
3. Security system, to be fixed under pool coping
Ultra-resistant security system, discreet and esthetic.
Easy to install and handle.
1. Security system, to be fixed to pool wall
2. Security system, to be fixed under pool coping with 2 possible heights: 2 supplied connecting rods (1 long, 1 short).
Use :
To attach the strap : Lift front plat and install T connection.
To remove the strap : Pivot the T connection to remove and replace the front plate.
Colour of the ABS strap matches the slats of your shutter
blue
grey
sand
white
Secured opening
Warning : This fixation system is incompatible with salt treatment
The motor of the axis is situated above the waterline, under slatted flooring.
Dimensions of pool in meters
Waterline motor
8m x 4m
11080
10m x 5 m
12790
On option : ROMAN stair cut, squared finish diameter <= 3 m
+ 330
*Prices including VAT for a standard pool configuration. Supplied elements : mechanical system, slats, Handroanthus slatted flooring, separation panel, panel support, security flanges for pool wall.
Other combinations are possible, please contact us for your personalised quote, corresponding to your exact configuration.
The price of the shutter includes:
- 1 ROUSSILLON immersed axis
- 1 white, opaque slatted shutter cover
- 1 security system (ABS flanges to anchor to pool wall and straps)
- 1 white supporting beam with white anchoring supports
- 1 white lacquered aluminium slatted flooring section 700mm
- 1 white separation panel 900mm (for a duct up to 1.17m in depth)
- White separation panel supports to anchor supporting beam
- Packaging
These prices do not include a stair cut (available on option) or transport costs (consult us).
Immersed shutter with waterline motor
Standard
Maximum 6x12m + stairs
Limit management
Maintenance is faster, easier and simplified, access to regulate limit management is also eased.
Installation is facilitated for existing pools or pools under construction.
The motor of the immersed automatic shutter is positioned in the duct containing the axis but is not in contact with the pool water.
Access to the motor is, therefore, simplified.
The immersed zone that contains the axis of the shutter can be isolated by a separation panel built during the construction of the pool or after, using a PVC separation panel.
ROUSSILLON immersed shutter with white aluminium slatted flooring
Mechanical kit of ROUSSILLON immersed shutter with waterline motor
- 1 motor featuring limit management
- 1 flange support kit (removable) to be anchored to the pool edge
- 1 rolling axis for slatted shutter cover
- 1 key command (3 positions to be held in place) situated at a distance (with view on the pool) conform to norm NFP 90-308
- 1 electric box.
- 1 flange support kit (removable) to be anchored to the pool edge
- 1 rolling axis for slatted shutter cover
- 1 key command (3 positions to be held in place) situated at a distance (with view on the pool) conform to norm NFP 90-308
- 1 electric box.
Installation of flanges on the motor and bearing side
Diameter of shutter on axis
Supporting beam and brackets
The shutter is delivered with a lacquered aluminium supporting beam. Two sections are available : L100 x H70mm (1) or L100 x H100mm (2).
The supporting beam is available in white, sand and grey.
There are two supplied supporting brackets with a range of 4 different types of brackets adapted to your specific pool configuration:
- Brackets for horizontal profile installation on a liner pool finish (in the case of construction)
- Brackets for vertical profile installation on a liner pool finish (in the case of renovation)
- Adjustable brackets with adapted support
- Brackets to be fixed to the pool wall
Separation panel
3 standard sizes :
- Standard Panel 900mm
- Panel 1200mm (on option)
- Panel 1500mm (on option)
3 couleurs :
- White
- Sand (on option)
- Grey (on option)
The separation panel is made from PVC boards 250mm in height and 24mm in width. The PVC boards are reinforced with a stainless steel bar.
The separation panel is maintained in place by means of supports which are to be anchored to the pool wall or under the supporting beam fixation brackets.
- Standard Panel 900mm
- Panel 1200mm (on option)
- Panel 1500mm (on option)
3 couleurs :
- White
- Sand (on option)
- Grey (on option)
The separation panel is made from PVC boards 250mm in height and 24mm in width. The PVC boards are reinforced with a stainless steel bar.
The separation panel is maintained in place by means of supports which are to be anchored to the pool wall or under the supporting beam fixation brackets.
Supports to anchor the separation panel
2 types of supports are available :
- Support to be fixed to the pool wall (1)
- Support to be fixed the supporting beam bracket (2)
3 available colours :
- White
- Sand (on option)
- Grey (on option)
Support for separation panel
- Support to be fixed to the pool wall (1)
- Support to be fixed the supporting beam bracket (2)
3 available colours :
- White
- Sand (on option)
- Grey (on option)
Support for separation panel
Support for separation panel to be fixed to pool wall
Bracket for separation panel to be fixed under the supporting beam
Slatted flooring
The slatted flooring protects the shutter mechanical system and offers improved esthetic.
3 available finitions :
- Upper and lower side aluminium (1) White, Sand or Grey, 23mm in depth
- Composite wood (2) wooden or grey finish, 23mm in depth (on option)
- Handroanthus hardwood (3) 23mm in depth (on option)
2 standard widths :
- 700mm x 1000mm
- 950mm x 1000mm
It is equally possible to provide made to measure slatted flooring for the aluminium and Handroanthus finishes.
For pools with a PVC separation panel, the slatted flooring installed will be 700mm. For pools with a "built" separation panel, 950mm sections will be used.
The slatted flooring is placed on a section of the supporting beam and on the pool edge if the pool coping is positioned at least 50mm behind the edge of the pool, or on a bracket anchored to the pool wall.
Aluminium slatted flooring measures 125 mm in width. We remind you that it is not possible to cut slats to reduce their length (in this case, anticipate a trim of the pool coping).
3 available finitions :
- Upper and lower side aluminium (1) White, Sand or Grey, 23mm in depth
- Composite wood (2) wooden or grey finish, 23mm in depth (on option)
- Handroanthus hardwood (3) 23mm in depth (on option)
2 standard widths :
- 700mm x 1000mm
- 950mm x 1000mm
It is equally possible to provide made to measure slatted flooring for the aluminium and Handroanthus finishes.
For pools with a PVC separation panel, the slatted flooring installed will be 700mm. For pools with a "built" separation panel, 950mm sections will be used.
The slatted flooring is placed on a section of the supporting beam and on the pool edge if the pool coping is positioned at least 50mm behind the edge of the pool, or on a bracket anchored to the pool wall.
Aluminium slatted flooring measures 125 mm in width. We remind you that it is not possible to cut slats to reduce their length (in this case, anticipate a trim of the pool coping).
Details of the shutter slats
The slats of the Roussillon immersed shutter with waterline motor conform to the norm NF P90-308
Each slat is composed of 3 compartments. Each compartment contains air which ensures buoyancy and limits heat dispersion.
At the extremity of each slat, caps are soldered to ensure water tightness. 20 mm fins finish each element. These fins can be replaced by fins which vary in size, to fit your particular pool configuration.
Slats
PVC with anti-stain and anti-UV treatment
Width of slats
71 mm
Depth of slats
17 mm
Composition of slats
Stabalised with calcium / zinc to avoid staining
Stair option
Consult us
Finishing fins
Shaped finish
Guiding wheels
Shutter cover assembly
- The shutter is assembled by clipping the slats together.
- To clip one slat to the other, begin by engaging the lower hook of the male fixture on the right-hand slat into the female fixture on the left-hand slat (fig.1 et fig.2).
- Repeat an oscillating movement till the slats click together (fig.3).
Stair cuts
When the Roussillon immersed shutter with waterline motor is positioned on the pool width, it can be adapted to several stair shapes : rectangular (1), trapezoid (2), roman (3), semi-circular (4) or free form (5) (after consultation with us).
Two finishes are available for stair cuts : Square finish (a) or shaped finish (b).
The straight cut is the most simple. The "shaped" cut is perfectly formed to the shape of your pool. This solution proves to be the most esthetically pleasing.
Stair cuts are available on option : consult us for your specific quote
Security system
The Roussillon immersed shutter with waterline motor is supplied with an anti-lift system. It is essential to install a fixation system if your shutter is to conform to the norm NF 90-308.
We offer the choice of 3 security systems :
1. Supplied with shutter : Fabric loop and strap system
Easy to install under pool coping or to pool wall.
Colour of strap : white.
2. On option : ABS system
You can choose the ABS strap security system, to be fixed to pool wall or under coping.
1. ABS security strap
2. Security system, to be fixed to pool wall
3. Security system, to be fixed under pool coping
3. On option, stainless steel system
Ultra-resistant security system, discreet and esthetic.
Easy to install and handle.
1. Security system, to be fixed to pool wall
2. Security system, to be fixed under pool coping with 2 possible heights: 2 supplied connecting rods (1 long, 1 short).
Use :
To attach the strap : Lift front plat and install T connection.
To remove the strap : Pivot the T connection to remove and replace the front plate.
Colour of the ABS strap matches the slats of your shutter
blue
grey
sand
white
Secured opening
Warning : This fixation system is incompatible with salt treatment
How many security straps do I need on my immersed shutter ?
How many security straps do I need on my immersed shutter?
Maximum inner length of pool length
Side opposite axis
Width less or equal to 3 m
2
From 3 to 5 m
3
From 5 to 7 m
4
Less than 7 m
5
Packing and transport
At least two persons and adapted equipment are needed to unload and manipulate the delivery.
All delivered merchandise should be checked with the driver.
All delivered merchandise should be checked with the driver.
Warranty
4 years on motor + box (non inclusive of labour)
3 years on slat buoyancy and sealing
Photos non-contractual
Price incl. VAT
Price incl. VAT
Ask for a free quote eca roussillon immersed shutter with waterline motor

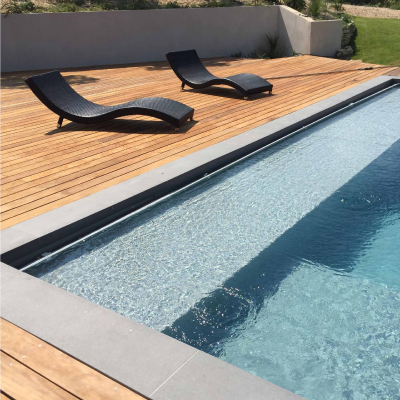

Other product : ECA ROUSSILLON immersed shutter with waterline motor
At best price 11080 eur Including VAT.
Please fill in this form carefully. Our commercial service will handle your request promptly.
UK freephone hotline
Monday Friday 9.00 19.00, Saturday 10.00 18.00
Spare parts order
You are looking for a spare part for «ECA ROUSSILLON immersed shutter with waterline motor » ?
Please click the button below. Our commercial service will handle your request promptly.
